Schneeberger
Mineral casting machine frame

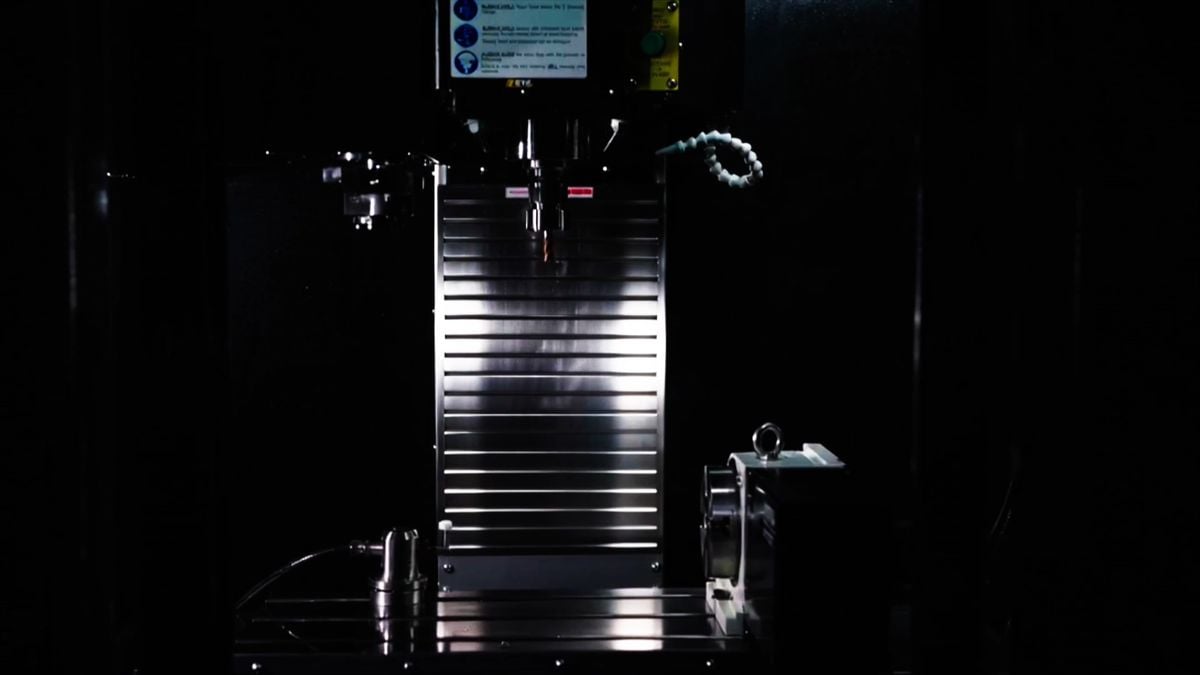

Travel
X travel
400 mm (15.7″)
Y travel
300 mm (11.8")
Z travel
380 mm (14.9")
Distance between spindle end and tabletop
150-530 mm (5.9"- 20.8")
Distance between spindle and column surface
358 mm (14")
Table
Table size
700×300 mm (27.56"×11.81")
T-slots (number×size×distance)
3×14×100 mm (0.12×0.55×3.94")
Max. table load
330 lb (150 kg)

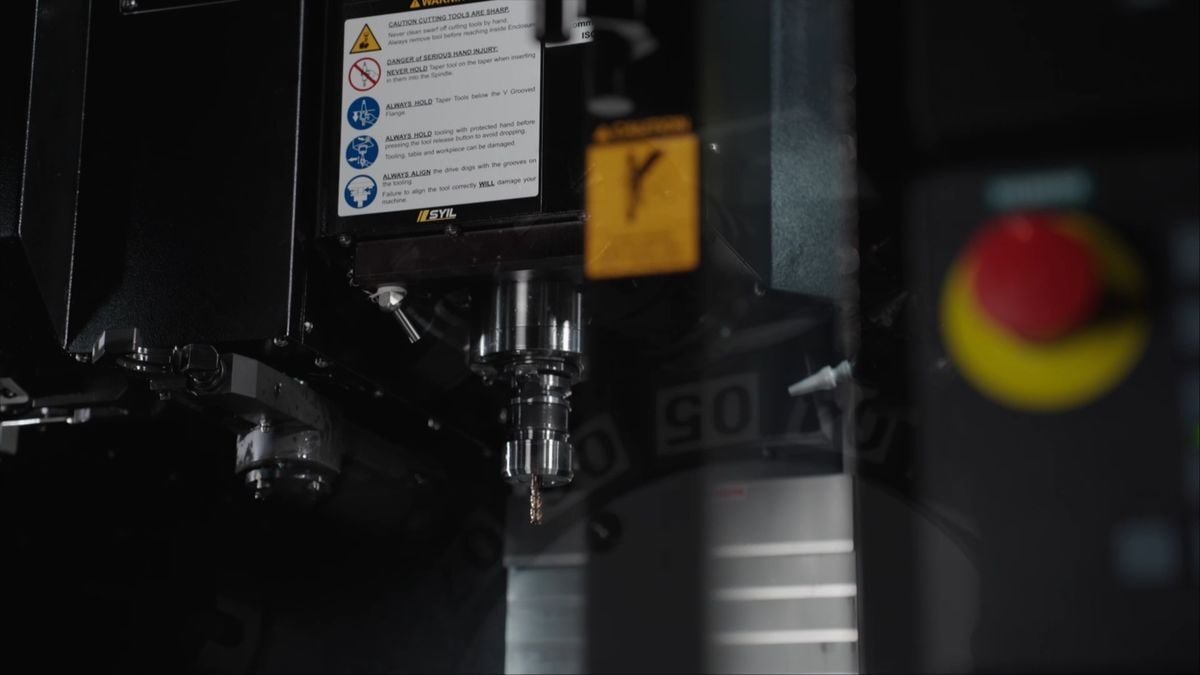

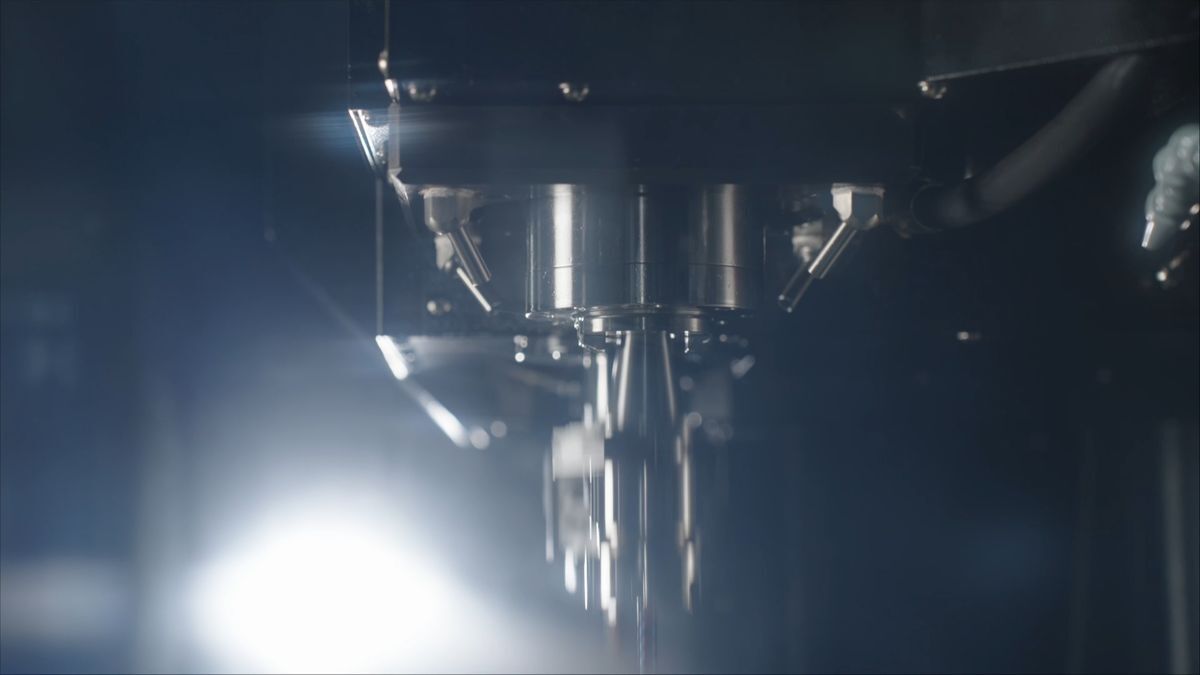

Spindle
Spindle Nose
BT30
Spindle Speeds
12,000 rpm
Mechanism of Transmission
Belt
Feed
Cutting Feed
393.7 ipm (10,000 mm/min)
Rapid Traverse
1181.1 ipm (30,000 mm/min)
-1.png)

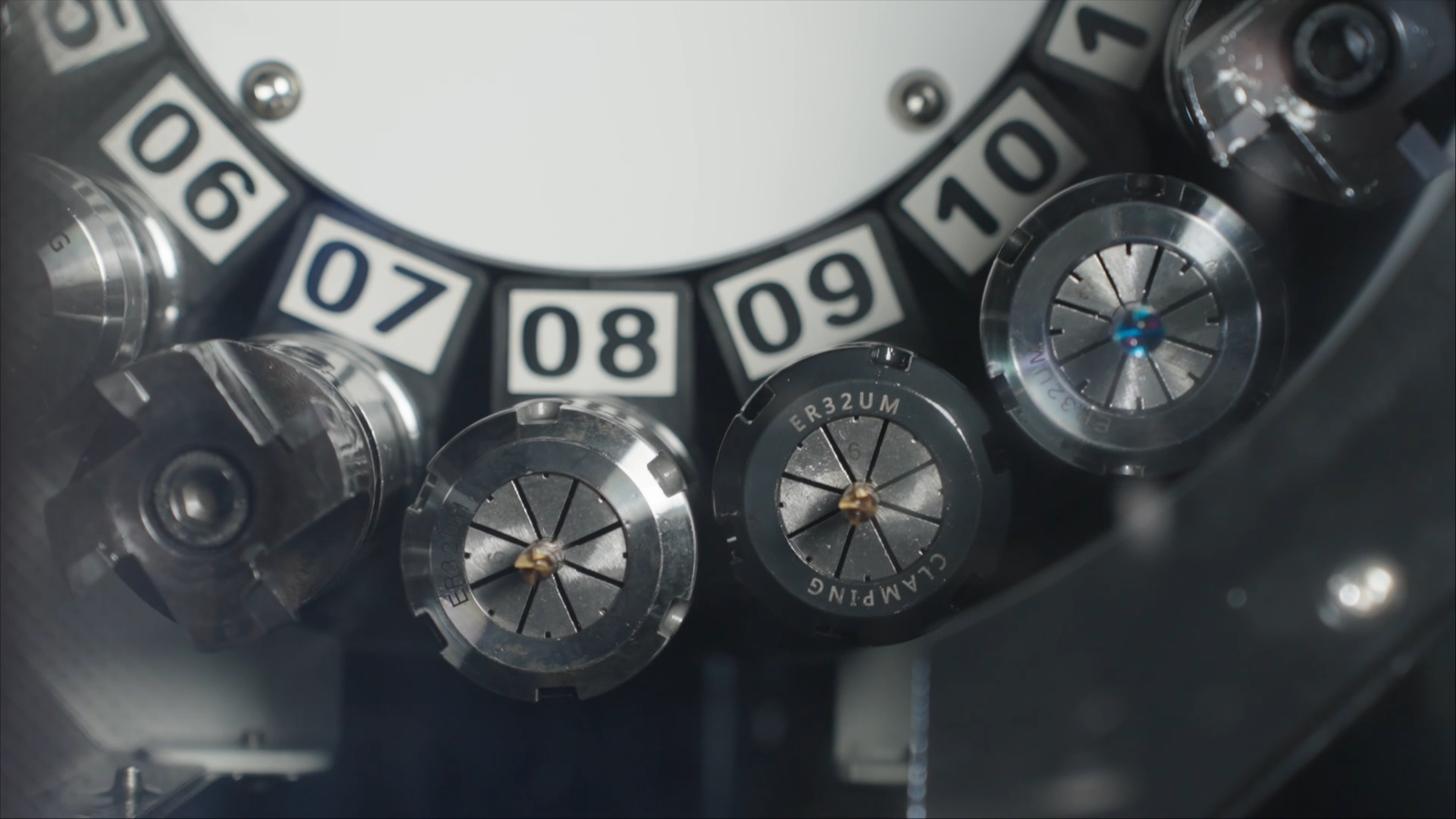

Auto Tool Changer
Tool Type
Arm type
Tool Storage Capacity
16 pcs
Max. Tool Diameter
63 mm (2.4")
Max. Tool Length
200 mm (7.8")
Max. Tool Weight
6.6 lb (3 kg)
Tool to Tool
1.5 s

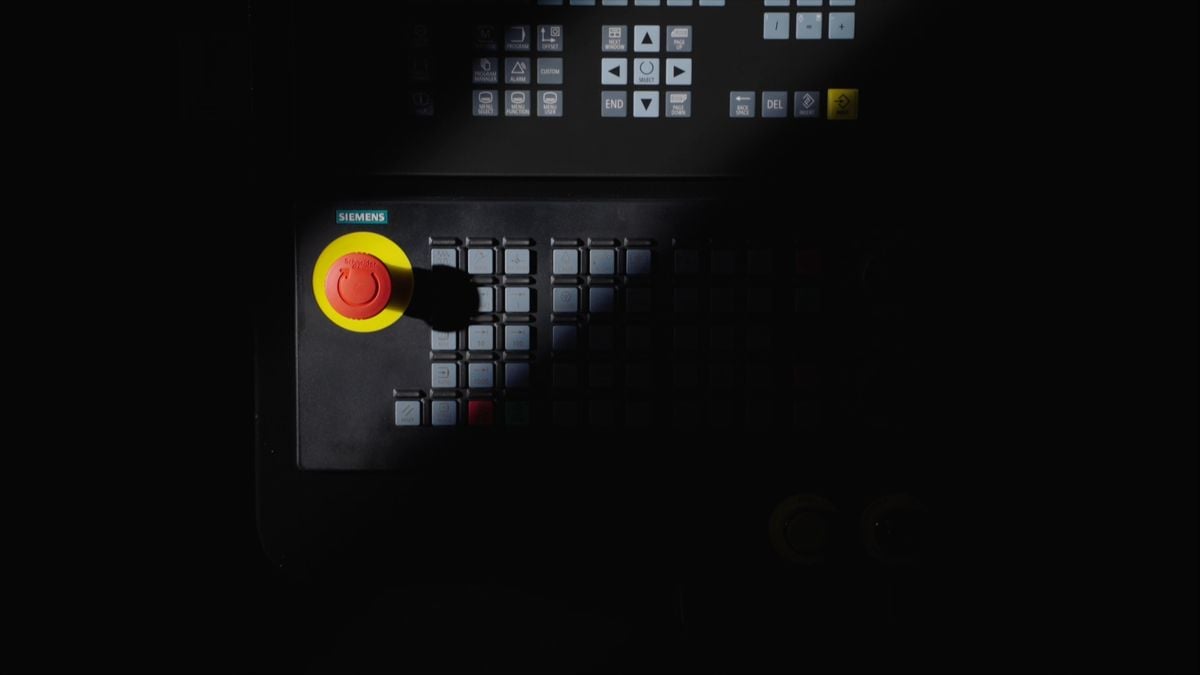

Power - Siemens 828
Spindle motor output (Rate/Max)
7.5/11 kW
Drive motors (X,Y,Z)
1.1/2.2/2.2 kW
Power source
AC380V/ 3-Phase
Power
14 kVA
Machine Size and Weight
Floor size (L×W×H)
1800×1600×2250 mm (70.87 × 62.99 × 88.58")
Weight
4850 lb (2200 kg)

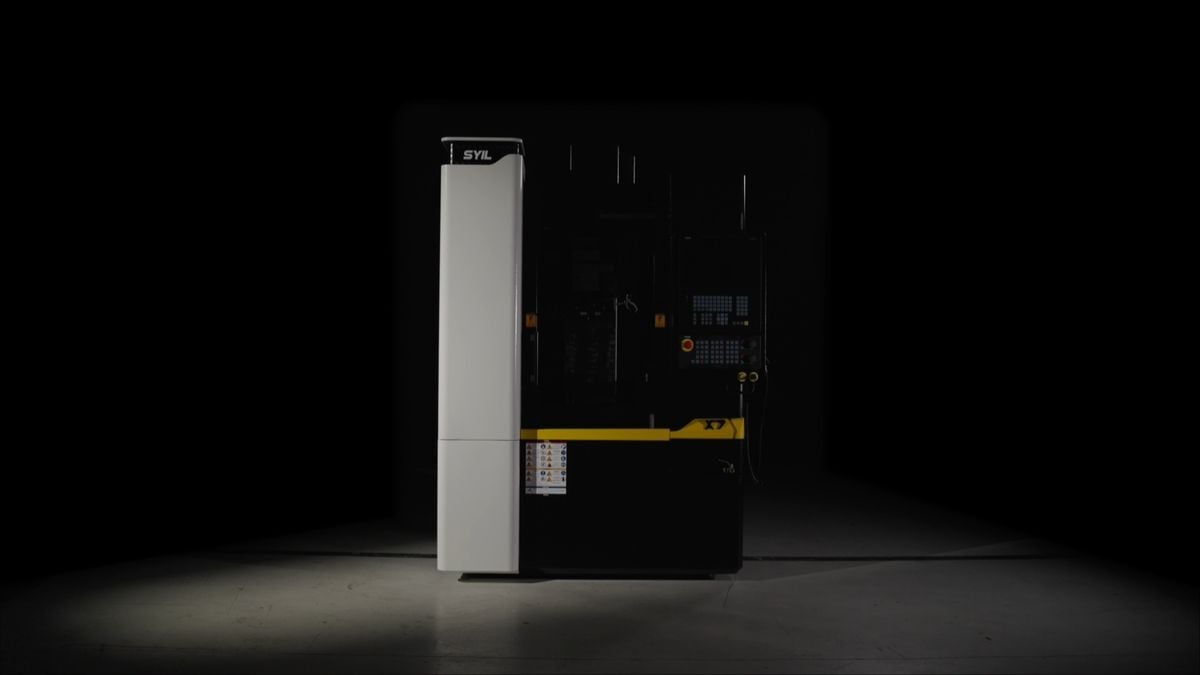

Compact CNC Vertical Mill
The compact SYIL X7 CNC machine offers a small footprint with unprecedented speed. It provides full CNC capabilities in a compact space, ensuring high machining quality.
%20(1).jpg?width=5760&name=Mask%20group%20(23)%20(1).jpg)

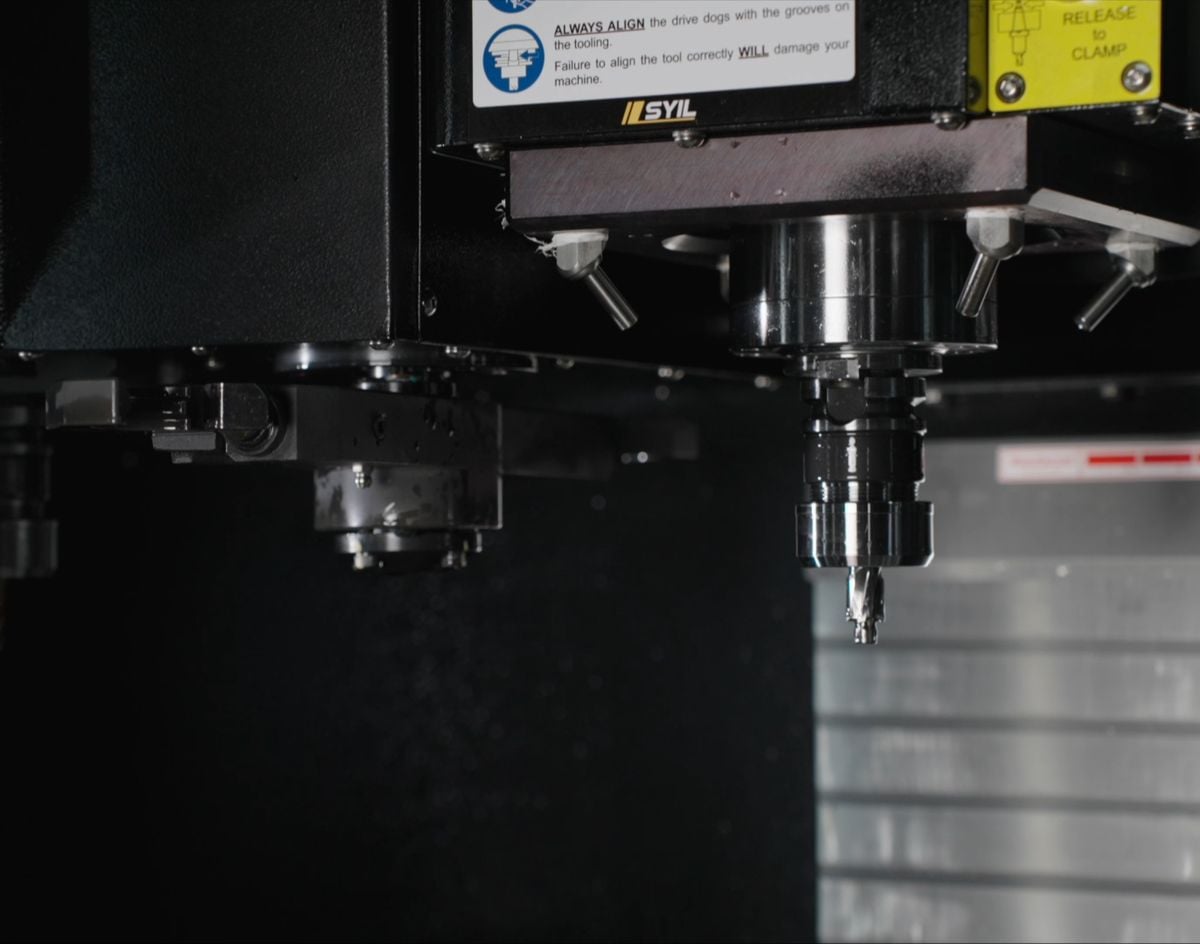

THK
High-precision ball screws and linear guides

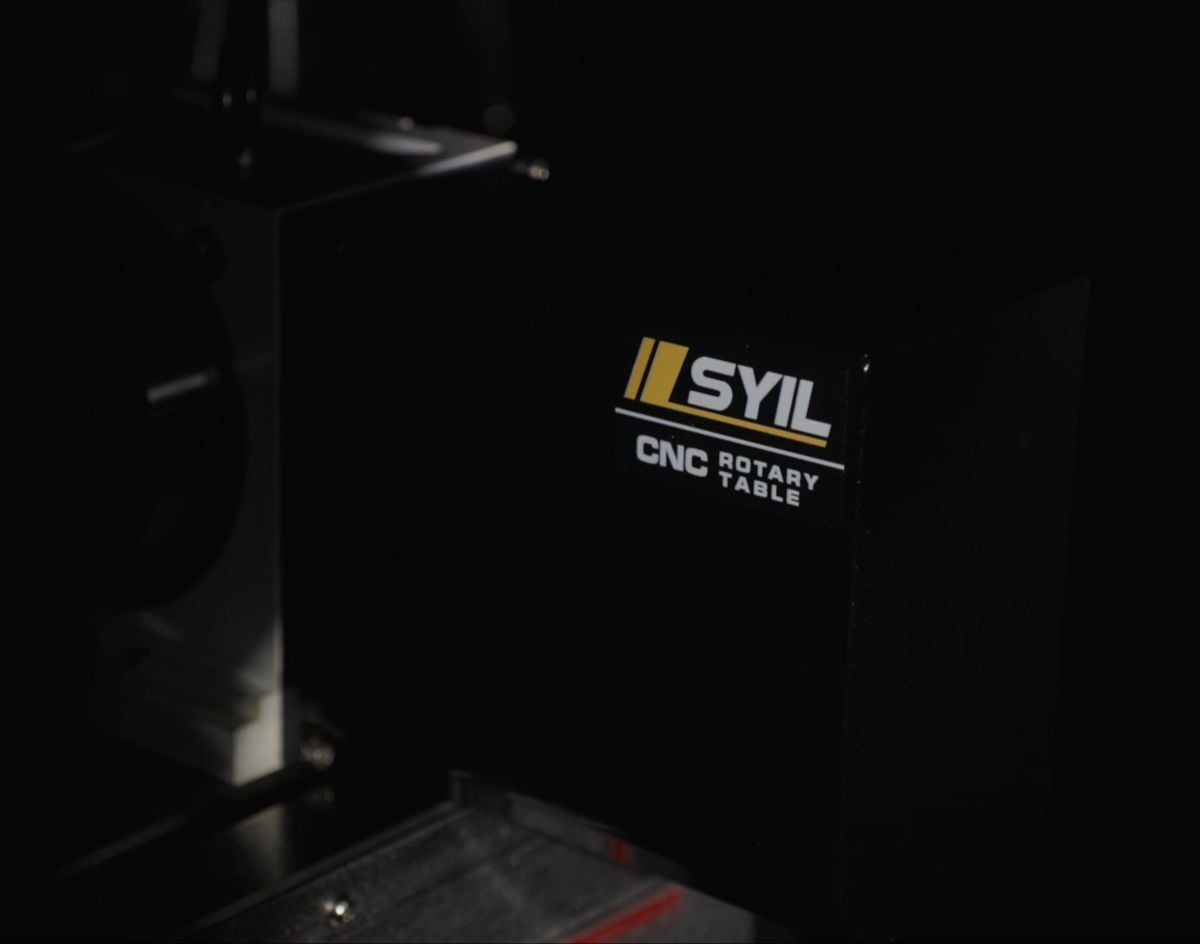

Fourth Axis
Optional fourth axis available

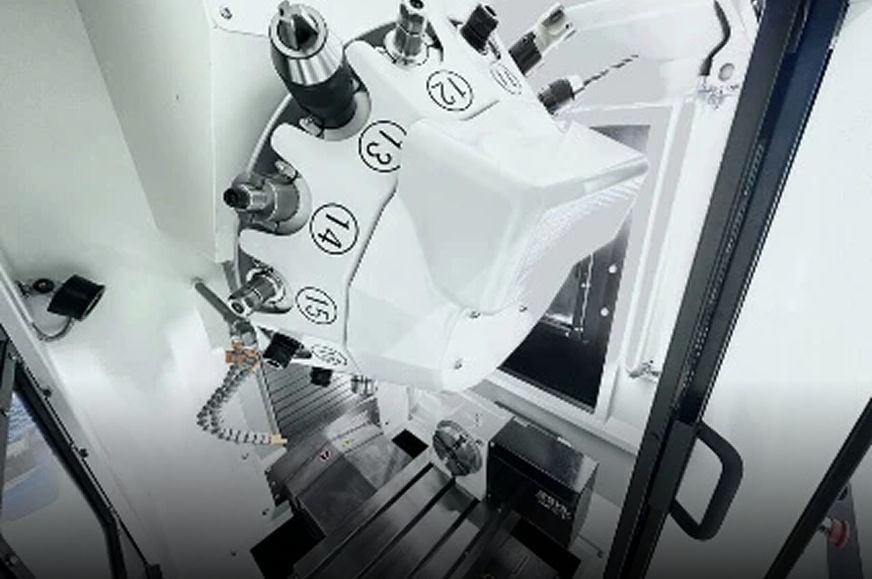

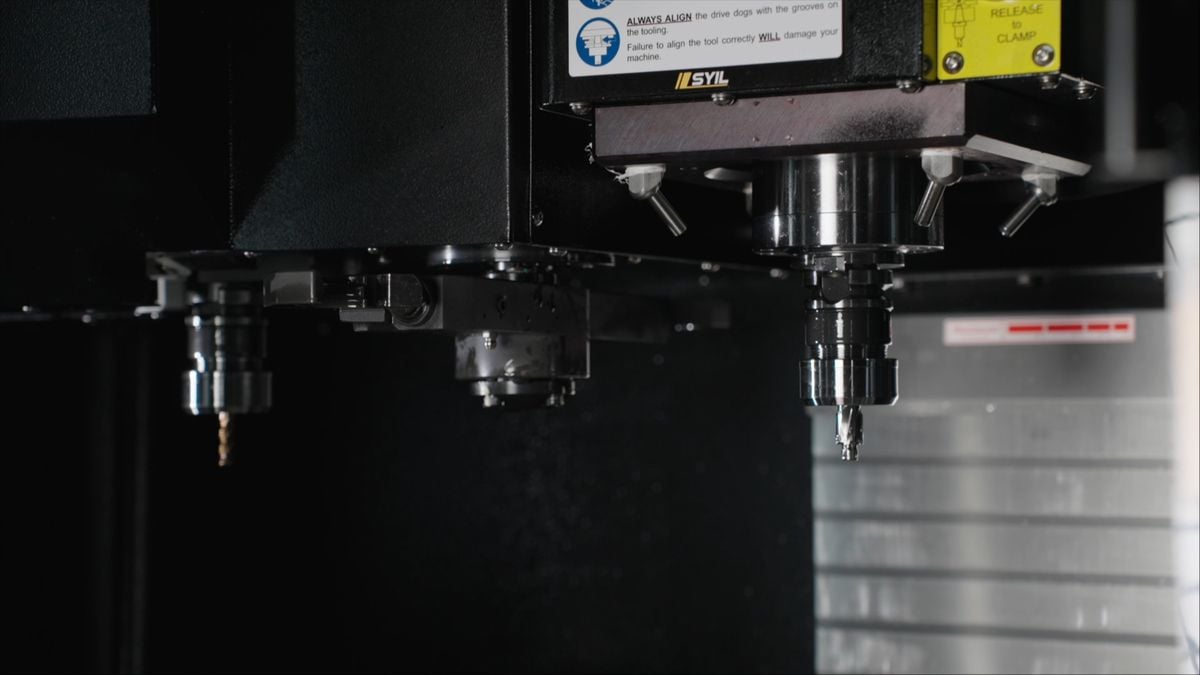

High-speed Servo Tool Changer
16 units BT30
SYIL X7 Options
125mm.
for 125mm NC Rotary Table.
Wireless type.
Cable type TTC200.
S800.
Technical Specifications
X5
X7
X9
X11
Table
Table size (mm)
Table size (in)
560×260
22.05×10.24
700×300
27.56×11.81
860×500
33.86×19.69
1050×550
41.34×21.65
Table load (kg)
Table load (lb)
150
331
150
331
500
1102
600
1323
Table surface: number×size×distance (mm)
Table surface: number×size×distance (in)
T-slots 3×14×80
T-slots 3×0.55×3.15
T-slots 3×14×100
T-slots 3×0.55×3.94
T-slots 5×18×100
T-slots 5×0.71×3.94
T-slots 5×18×90
T-slots 5×0.71×3.54
Travel distances
X-axis (mm)
X-axis (in)
300
11,81
400
15,75
760
29,92
1000
39,37
Y-axis (mm)
Y-axis (in)
260
10,24
300
11,81
500
19,68
500
19,68
Z-axis (mm)
Z-axis (in)
300
11,81
380
14,96
500
19,68
500
19,68
Distance from spindle nose to table top (mm)
Distance from spindle nose to table top (in)
150-450
5.91-17.72
150-530
5.91-20.87
100-600
3.94-23.62
110-610
4.33-24.02
Distance between spindle and column surface (mm)
Distance between spindle and column surface (in)
330
12,99
358
14,09
530
20,87
650
25,59
Spindle
Spindle taper
Spindle taper
BT30
BT30
BT30
BT30
BT40
BT40
BT40
BT40
Power-drive
Power-drive
Direct
Direct
Belt
Belt
Belt
Belt
Belt
Belt
Max. spindle speed (rpm)
20000
20000
12000
12000
10000 (12000 optional)
10000 (12000 optional)
10000
10000
Feed
Rapid traverse (mm/min)
Rapid traverse (in/min)
30
1181,1
30
1181,1
30
1181,1
30
1181,1
Cutting feed (mm/min)
Cutting feed (in/min)
10
393,7
10
393,7
10
393,7
10
393,7
Automatic tool changer
Type
Type
Wheel
Wheel
Arm
Arm
Arm
Arm
Arm
Arm
Tool holder
Tool holder
BT30
BT30
BT30
BT30
BT40
BT40
BT40
BT40
Tool storage capacity
Tool storage capacity
16
16
16
16
24
24
24
24
Max. tool diameter (mm)
Max. tool diameter (in)
63
2,48
63
2,48
125
4,92
120
4,72
Max. tool length (mm)
Max. tool length (in)
200
7,87
200
7,87
240
9,45
300
11,81
Max. tool weight (kg)
Max. tool weight (lb)
3
6,61
3
6,61
7
15,43
7
15,43
Tool to tool (s)
Tool to tool (s)
1
1
1.5
1.5
2
2
2.5
2.5
Other data
Machine weight (kg)
Machine weight (lb)
2180
4806
2200
4850
6000
13228
7000
15432
Machine dimensions L x W x H (mm)
Machine dimensions L x W x H (in)
2020×1000×2360
79.53×39.37×92.91
1800×1600×2250
70.87×62.99×88.58
1850×2245×2800
72.83×88.39×110.24
2600×2150×2500
102.36×84.65×98.43
Min/max air pressure (MPa)
Min/max air pressure (PSI)
0.4/0.8
60/120
0.4/0.8
60/120
0.4/0.8
60/120
0.4/0.8
60/120
Coolant tank capacity (L)
Coolant tank capacity (gal)
80
21,1
80
21,1
130
34,3
240
63,4
Technical Specifications
X5
X7
X9
X11
Table
Table size (mm)
560×260
700×300
860×500
1050×550
Table load (kg)
150
150
500
600
Table surface (number×size×distance in mm)
T-slots 3×14×80
T-slots 3×14×100
T-slots 5×18×100
T-slots 5×18×90
Travel distances
X-axis (mm)
300
400
760
1000
Y-axis (mm)
260
300
500
500
Z-axis (mm)
300
380
500
500
Distance from spindle nose to table top
150-450
150-530
100-600
110-610
Distance between spindle and column surface
330
358
530
650
Spindle
Spindle taper
BT30
BT30
BT40
BT40
Power-drive
Direct
Belt
Belt
Belt
Max. spindle speed (rpm)
20,000
12,000
10,000 (12,000 optional)
10,000
Feed
Rapid traverse (mm / min)
30,000
30,000
30,000
30,000
Cutting feed (mm / min)
10,000
10,000
10,000
10,000
Automatic tool changer
Type
Wheel
Arm
Arm
Arm
Tool holder
BT30
BT30
BT40
BT40
Tool storage capacity
16
16
24
24
Max. tool diameter (mm)
63
63
125
125
Max. tool length (mm)
200
200
240
300
Max. tool weight (kg)
3
3
7
7
Tool to tool (s)
1
1.5
2
2.5
Other data
Machine weight (kg)
2180
2200
5000
7000
Machine dimensions L x W x H (mm)
Footprint including coolant tank and controller
Footprint including coolant tank and controller
2020×1000×2360
1800×1600×2250
1850×2245×2800
2600×2150×2500
Min/max air pressure (MPa (psi))
0.4/0.8 (60/120)
0.4/0.8 (60/120)
0.4/0.8 (60/120)
0.4/0.8 (60/120)
Coolant tank capacity (Liters)
80
80
130
240
